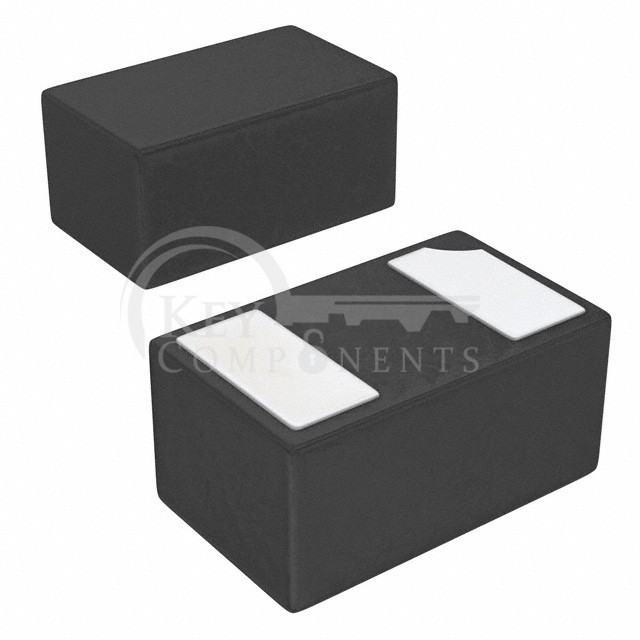

UCLAMP1571P.TNT
| Manufacturer Part | UCLAMP1571P.TNT |
|---|---|
| Manufacturer | Semtech Corporation |
| Description | TVS DIODE 15VWM 40VC SGP1610N2 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 1 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 15V (Max) |
| Voltage - Breakdown (Min): | 17.5V |
| Voltage - Clamping (Max) @ Ipp: | 40V |
| Current - Peak Pulse (10/1000µs): | 40A (8/20µs) |
| Power - Peak Pulse: | - |
| Power Line Protection: | No |
| Applications: | Automotive |
| Capacitance @ Frequency: | 220pF @ 1MHz |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 2-UDFN |
| Supplier Device Package: | SGP1610N2 |
