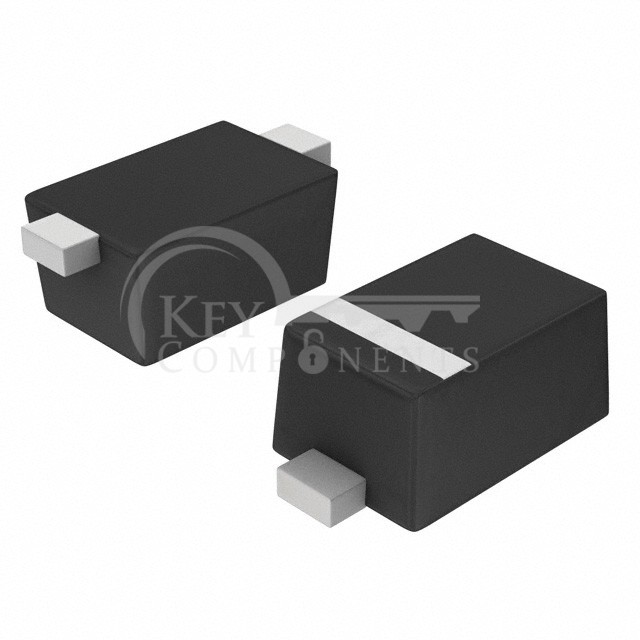

UCLAMP0501H.TCT
| Manufacturer Part | UCLAMP0501H.TCT |
|---|---|
| Manufacturer | Semtech Corporation |
| Description | TVS DIODE 5VWM 12.5VC SOD523 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 1 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 5V (Max) |
| Voltage - Breakdown (Min): | 6V |
| Voltage - Clamping (Max) @ Ipp: | 12.5V |
| Current - Peak Pulse (10/1000µs): | 16A (8/20µs) |
| Power - Peak Pulse: | 240W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 160pF @ 1MHz |
| Operating Temperature: | -55°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-79, SOD-523 |
| Supplier Device Package: | SOD-523 |
