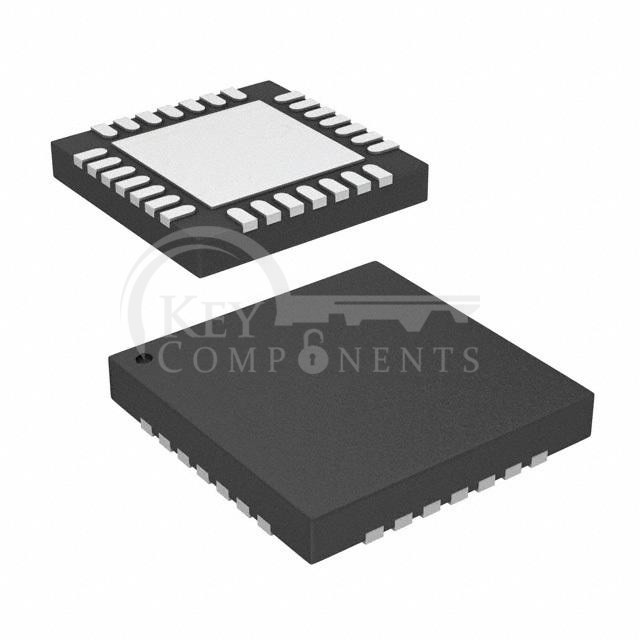

SX1509BIULTRT
| Manufacturer Part | SX1509BIULTRT |
|---|---|
| Manufacturer | Semtech Corporation |
| Description | IC GPIO EXPANDER I2C 16CH 28QFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of I/O: | 16 |
| Interface: | I²C |
| Interrupt Output: | Yes |
| Features: | Keypad Controller, LED Output, POR |
| Output Type: | Open Drain, Push-Pull |
| Current - Output Source/Sink: | 8mA, 15mA |
| Clock Frequency: | 400 kHz |
| Voltage - Supply: | 1.425V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 28-UFQFN Exposed Pad |
| Supplier Device Package: | 28-QFN-UT (4x4) |
