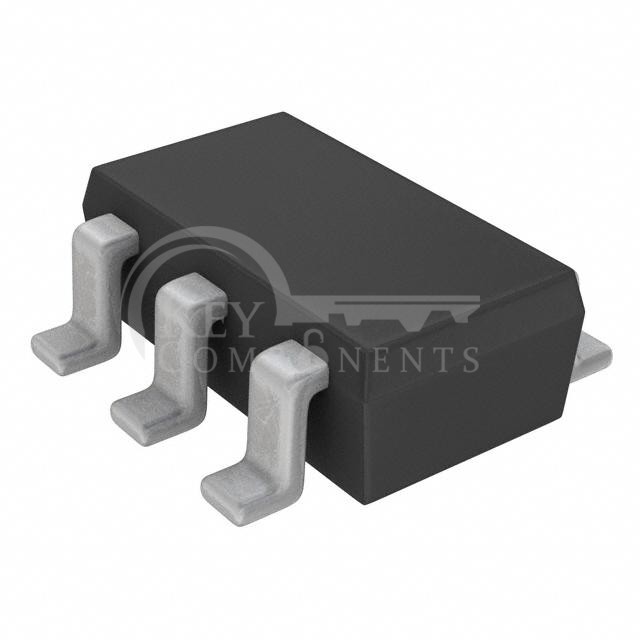

QST7TR
| Manufacturer Part | QST7TR |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Description | TRANS PNP 30V 1.5A TSMT6 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Transistor Type: | PNP |
| Current - Collector (Ic) (Max): | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max): | 30 V |
| Vce Saturation (Max) @ Ib, Ic: | 370mV @ 50mA, 1A |
| Current - Collector Cutoff (Max): | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 270 @ 100mA, 2V |
| Power - Max: | 500 mW |
| Frequency - Transition: | 280MHz |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package: | TSMT6 (SC-95) |
