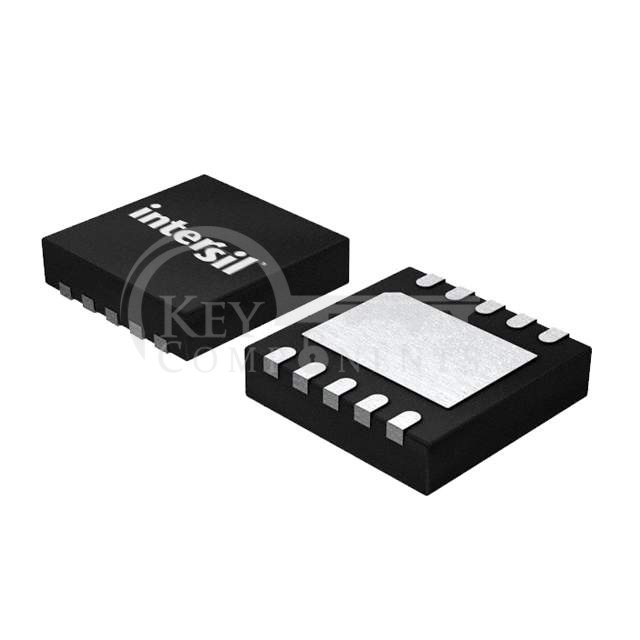

ISL6620ACRZ
| Manufacturer Part | ISL6620ACRZ |
|---|---|
| Manufacturer | Renesas Electronics America Inc |
| Description | IC GATE DRVR HALF-BRIDGE 10DFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Driven Configuration: | Half-Bridge |
| Channel Type: | Synchronous |
| Number of Drivers: | 2 |
| Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH: | - |
| Current - Peak Output (Source, Sink): | 2A, 2A |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | 36 V |
| Rise / Fall Time (Typ): | 8ns, 8ns |
| Operating Temperature: | 0°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-VFDFN Exposed Pad |
| Supplier Device Package: | 10-DFN (3x3) |
