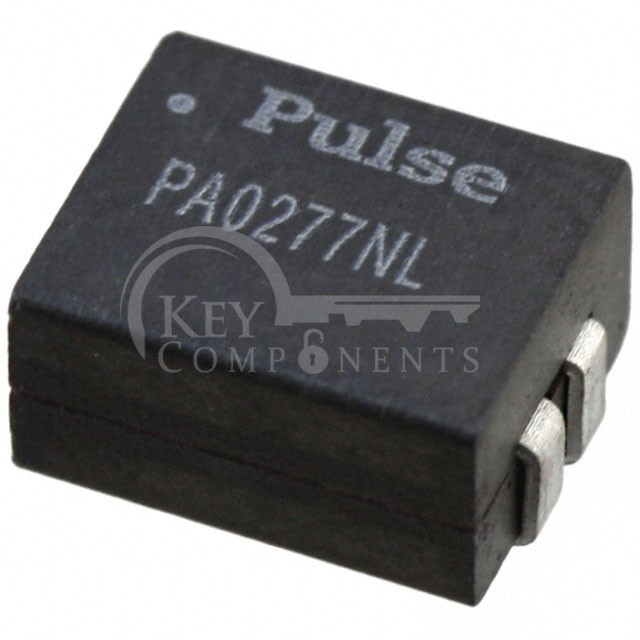

PA0277NL
| Manufacturer Part | PA0277NL |
|---|---|
| Manufacturer | Pulse Electronics Power |
| Description | FIXED IND 700NH 10.7A 95MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | - |
| Material - Core: | - |
| Inductance: | 700 nH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 10.7 A |
| Current - Saturation (Isat): | 12.6A |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 95mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 130°C |
| Inductance Frequency - Test: | - |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.350" L x 0.250" W (8.89mm x 6.35mm) |
| Height - Seated (Max): | 0.177" (4.50mm) |
