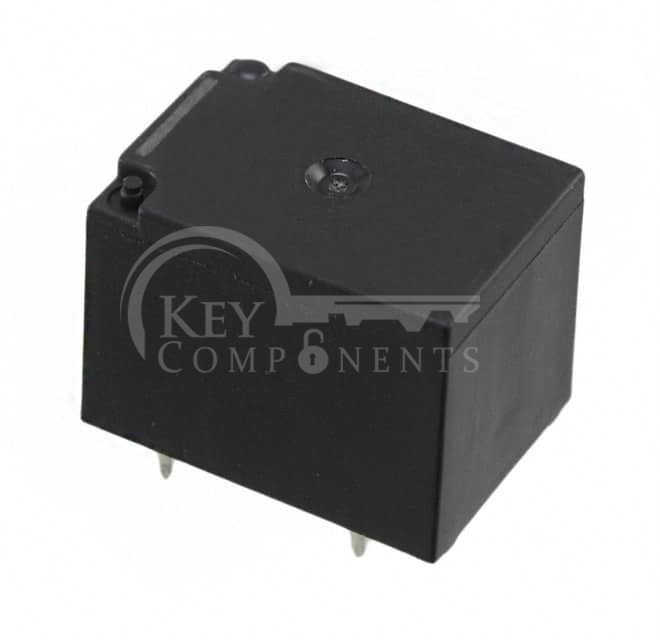

JS1A-12V
| Manufacturer Part | JS1A-12V |
|---|---|
| Manufacturer | Panasonic Electric Works |
| Description | RELAY GEN PURPOSE SPST 10A 12V |
| Category | Relays |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Mounting Type: | Through Hole |
| Coil Voltage: | 12VDC |
| Contact Form: | SPST-NO (1 Form A) |
| Contact Rating (Current): | 10 A |
| Switching Voltage: | 250VAC, 100VDC - Max |
| Coil Current: | 30 mA |
| Coil Type: | Non Latching |
| Features: | - |
| Termination Style: | PC Pin |
| Seal Rating: | Sealed - Fully |
| Coil Insulation: | - |
| Must Operate Voltage: | 8.4 VDC |
| Must Release Voltage: | 1.2 VDC |
| Operate Time: | 10 ms |
| Release Time: | 10 ms |
| Operating Temperature: | -40°C ~ 70°C |
| Contact Material: | Silver Alloy |
| Relay Type: | General Purpose |
