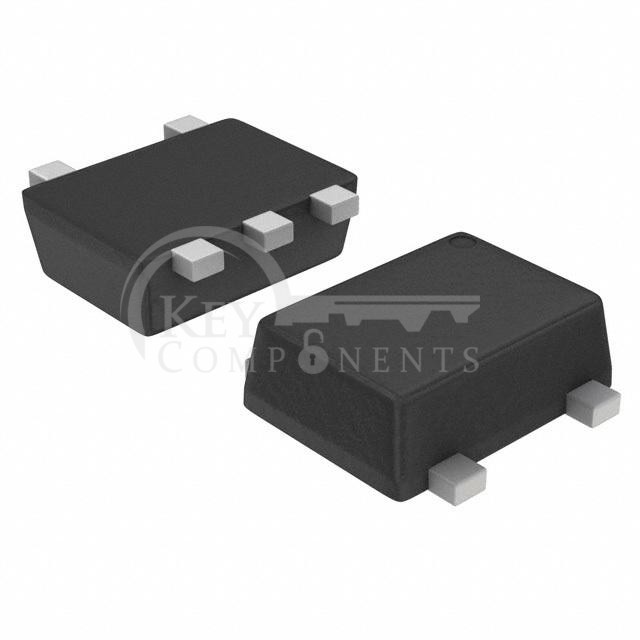

NZQA6V2XV5T1G
| Manufacturer Part | NZQA6V2XV5T1G |
|---|---|
| Manufacturer | onsemi |
| Description | TVS DIODE 4VWM 11.5VC SOT553 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 4 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 4V |
| Voltage - Breakdown (Min): | 5.89V |
| Voltage - Clamping (Max) @ Ipp: | 11.5V |
| Current - Peak Pulse (10/1000µs): | 9A (8/20µs) |
| Power - Peak Pulse: | 100W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 80pF @ 1MHz |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-553 |
| Supplier Device Package: | SOT-553 |
