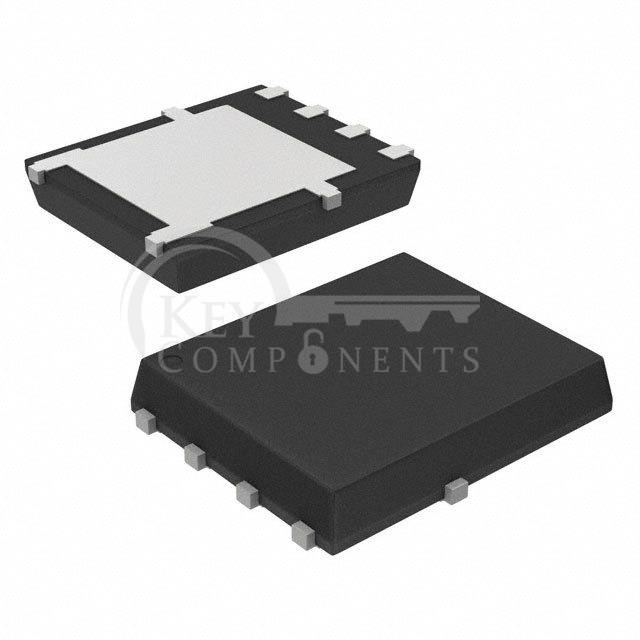

NVMFS5C404NLWFAFT1G

NVMFS5C404NLWFAFT1G

Manufacturer Part NVMFS5C404NLWFAFT1G
Manufacturer onsemi
Description MOSFET N-CH 40V 370A 5DFN
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:370A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:0.67mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:81 nC @ 4.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:12168 pF @ 25 V
FET Feature:-
Power Dissipation (Max):200W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:5-DFN (5x6) (8-SOFL)
Package / Case:8-PowerTDFN, 5 Leads
