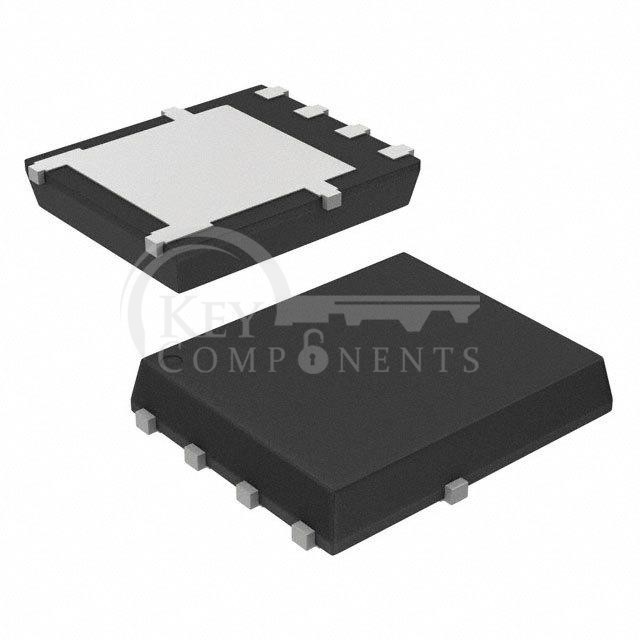

NVMFS4C03NT1G

NVMFS4C03NT1G

Manufacturer Part NVMFS4C03NT1G
Manufacturer onsemi
Description MOSFET N-CH 30V 31.4A/143A 5DFN
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:31.4A (Ta), 143A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:2.1mOhm @ 30A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:45.2 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:3071 pF @ 15 V
FET Feature:-
Power Dissipation (Max):3.71W (Ta), 77W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:5-DFN (5x6) (8-SOFL)
Package / Case:8-PowerTDFN, 5 Leads
