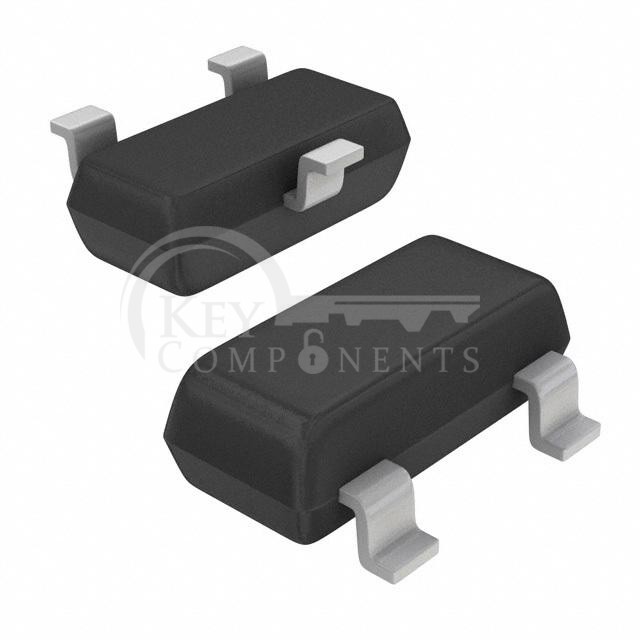

NTR4003NT3G

NTR4003NT3G

Manufacturer Part NTR4003NT3G
Manufacturer onsemi
Description MOSFET N-CH 30V 500MA SOT23-3
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4V
Rds On (Max) @ Id, Vgs:1.5Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id:1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:1.15 nC @ 5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:21 pF @ 5 V
FET Feature:-
Power Dissipation (Max):690mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3 (TO-236)
Package / Case:TO-236-3, SC-59, SOT-23-3
