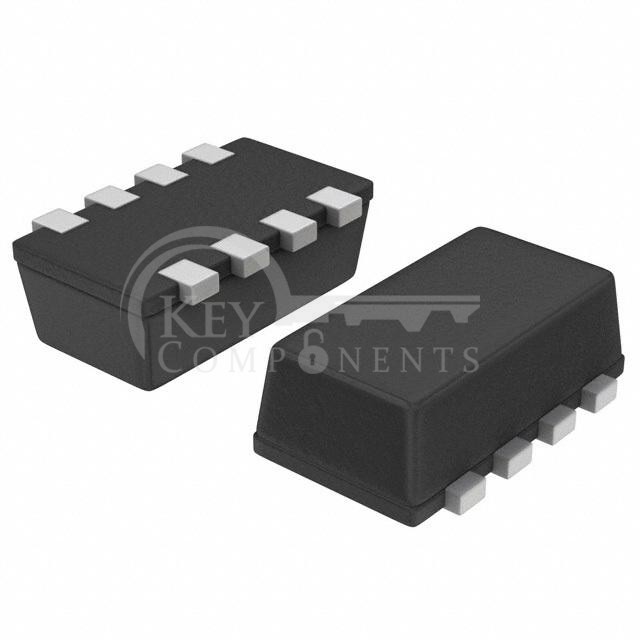

Manufacturer Part | NTHS2101PT1 |
---|---|
Manufacturer | onsemi |
Description | MOSFET P-CH 8V 5.4A CHIPFET |
Category | Discrete Semiconductor Products |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Obsolete |
FET Type: | P-Channel |
Technology: | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss): | 8 V |
Current - Continuous Drain (Id) @ 25°C: | 5.4A (Tj) |
Drive Voltage (Max Rds On, Min Rds On): | 1.8V, 4.5V |
Rds On (Max) @ Id, Vgs: | 25mOhm @ 5.4A, 4.5V |
Vgs(th) (Max) @ Id: | 1.5V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs: | 30 nC @ 4.5 V |
Vgs (Max): | ±8V |
Input Capacitance (Ciss) (Max) @ Vds: | 2400 pF @ 6.4 V |
FET Feature: | - |
Power Dissipation (Max): | 1.3W (Ta) |
Operating Temperature: | - |
Mounting Type: | Surface Mount |
Supplier Device Package: | ChipFET™ |
Package / Case: | 8-SMD, Flat Lead |
