NSVBCP56-10T3G

Manufacturer Part	NSVBCP56-10T3G
Manufacturer	onsemi
Description	TRANS NPN 80V 1A SOT223
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	63 @ 150mA, 2V
Power - Max:	1.5 W
Frequency - Transition:	130MHz
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

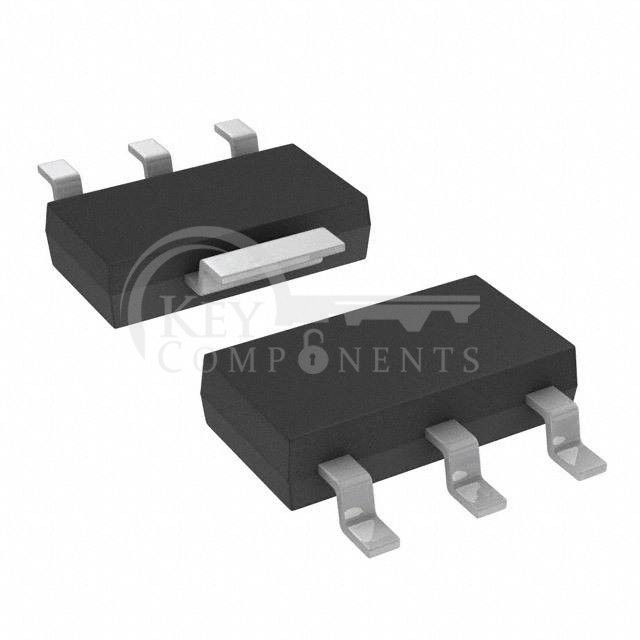

Package / Case:	TO-261-4, TO-261AA
Supplier Device Package:	SOT-223 (TO-261)
