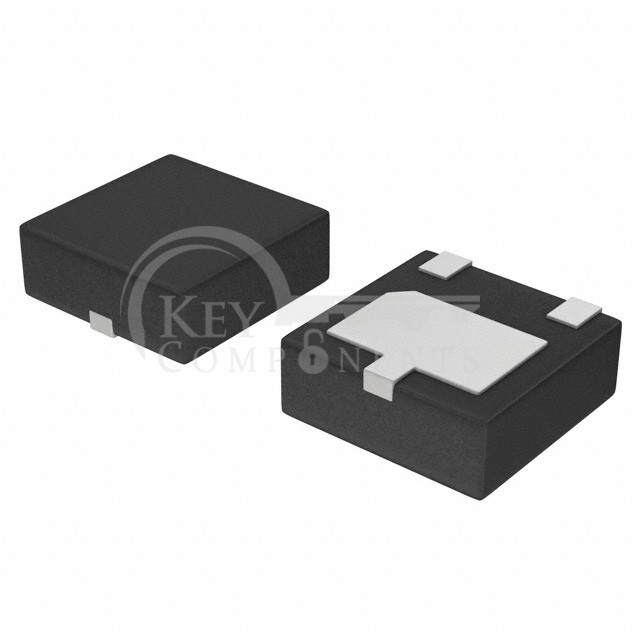

Manufacturer Part | NSS12100UW3TCG |
---|---|
Manufacturer | onsemi |
Description | TRANS PNP 12V 1A 3WDFN |
Category | Discrete Semiconductor Products |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Transistor Type: | PNP |
Current - Collector (Ic) (Max): | 1 A |
Voltage - Collector Emitter Breakdown (Max): | 12 V |
Vce Saturation (Max) @ Ib, Ic: | 440mV @ 100mA, 1A |
Current - Collector Cutoff (Max): | 100nA (ICBO) |
DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 500mA, 2V |
Power - Max: | 740 mW |
Frequency - Transition: | 200MHz |
Operating Temperature: | -55°C ~ 150°C (TJ) |
Mounting Type: | Surface Mount |
Package / Case: | 3-WDFN Exposed Pad |
Supplier Device Package: | 3-WDFN (2x2) |
Shipping Type | Ship Fee | Lead Time |
DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment method | Hand Fee |
Telegraphic Transfer | charge US$30.00 banking fee. |
Paypal | charge 4.0% service fee. |
Credit Card | charge 4% service fee. |
Western Union | charge US$0.00 banking fee. |
Money Gram | charge US$0.00 banking fee. |
