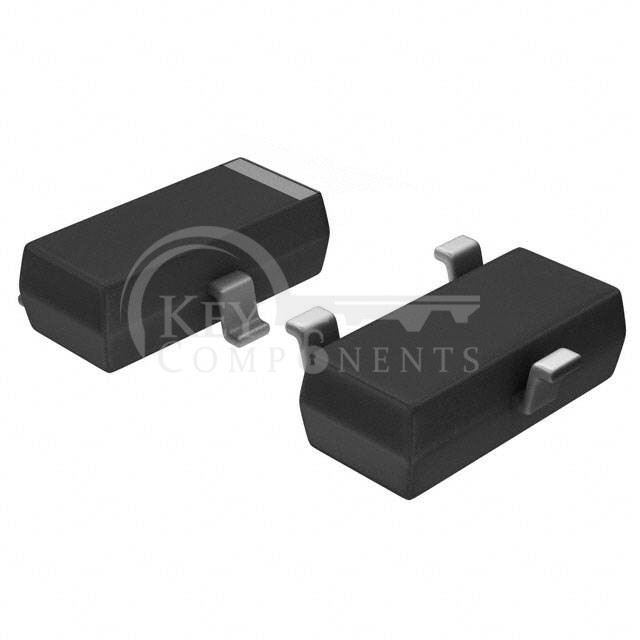

NDS331N

NDS331N

Manufacturer Part NDS331N
Manufacturer onsemi
Description MOSFET N-CH 20V 1.3A SUPERSOT3
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.7V, 4.5V
Rds On (Max) @ Id, Vgs:160mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:5 nC @ 4.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:162 pF @ 10 V
FET Feature:-
Power Dissipation (Max):500mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3
Package / Case:TO-236-3, SC-59, SOT-23-3
Shipping
Shipping Type Ship Fee Lead Time
DHL $20.00-$40.00 (0.50 KG) 2-5 days
Fedex $20.00-$40.00 (0.50 KG) 2-5 days
UPS $20.00-$40.00 (0.50 KG) 2-5 days
TNT $20.00-$40.00 (0.50 KG) 2-6 days
EMS $20.00-$40.00 (0.50 KG) 3-7 days
REGISTERED AIR MAIL $2.5-$7 (0.50 KG) 20-35 days
Payment
Payment method Hand Fee
Telegraphic Transfer charge US$30.00 banking fee.
Paypal charge 4.0% service fee.
Credit Card charge 4% service fee.
Western Union charge US$0.00 banking fee.
Money Gram charge US$0.00 banking fee.
Guarantees
  • We provide 90 days warranty;
  • The Pre-Shipment Inspection (PSI) will be applied;
  • If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
  • If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
  • If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
  • Taxes & VAT will not be included;
Parts Tags
NDS331N Price
NDS331N Distributor
NDS331N Manufacturer
NDS331N Technical Data
NDS331N PDF
NDS331N Datasheet
NDS331N Picture
NDS331N Image
NDS331N Part
NDS331N Stock
NDS331N Inventory
NDS331N Rfq
NDS331N Inquiry
NDS331N Online Order
Quote Request
Min. :
1
Availability :
311677 pieces
