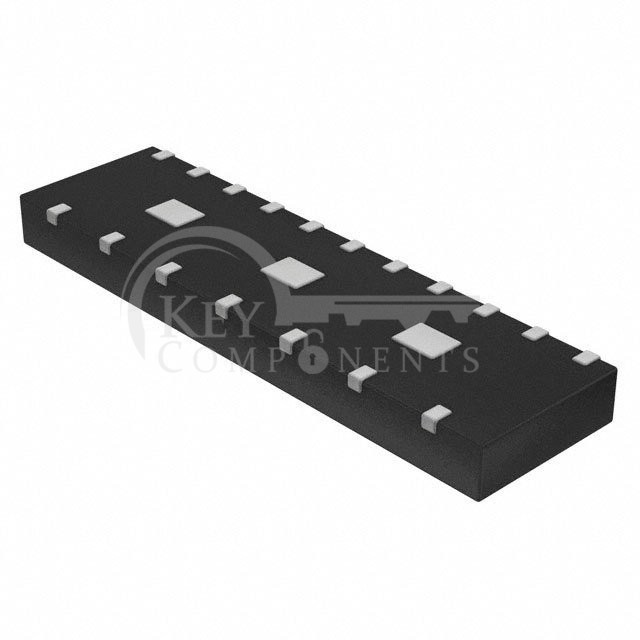

MG2040MUTAG

MG2040MUTAG

Manufacturer Part MG2040MUTAG
Manufacturer onsemi
Description TVS DIODE 5VWM 10VC 18UDFN
Category Circuit Protection
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Zener
Unidirectional Channels:14
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):5.5V
Voltage - Clamping (Max) @ Ipp:10V
Current - Peak Pulse (10/1000µs):1A (8/20µs)
Power - Peak Pulse:-
Power Line Protection:No
Applications:HDMI
Capacitance @ Frequency:0.35pF @ 1MHz
Operating Temperature:-55°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:18-UFDFN Exposed Pad
Supplier Device Package:18-UDFN (5.5x1.5)
