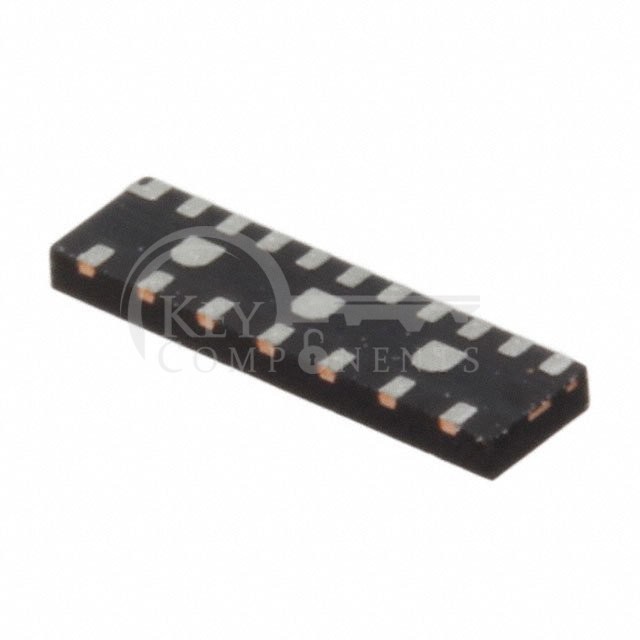

ESD8040MUTAG
| Manufacturer Part | ESD8040MUTAG |
|---|---|
| Manufacturer | onsemi |
| Description | TVS DIODE 3.3VWM 12VC 18UDFN |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 14 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 3.3V (Max) |
| Voltage - Breakdown (Min): | 5.5V |
| Voltage - Clamping (Max) @ Ipp: | 12V (Typ) |
| Current - Peak Pulse (10/1000µs): | 16A (100ns) |
| Power - Peak Pulse: | - |
| Power Line Protection: | No |
| Applications: | HDMI |
| Capacitance @ Frequency: | 0.3pF @ 1MHz |
| Operating Temperature: | -55°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 18-UFDFN Exposed Pad |
| Supplier Device Package: | 18-UDFN (5.5x1.5) |
