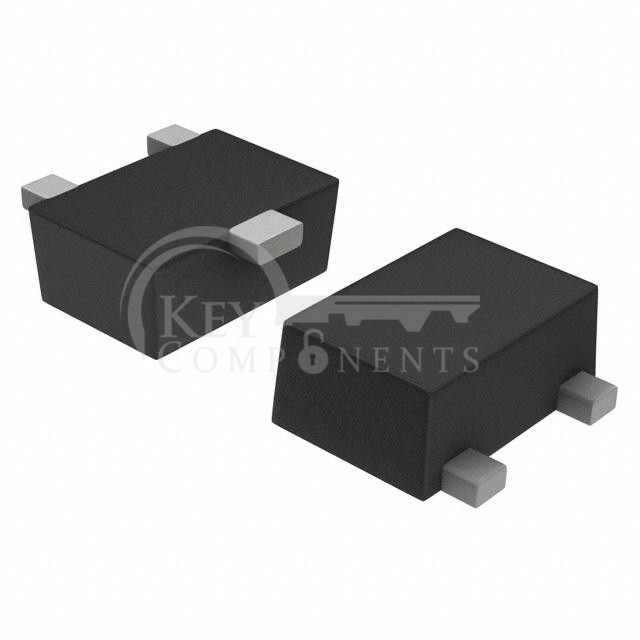

ESD7C3.3DT5G

ESD7C3.3DT5G

Manufacturer Part ESD7C3.3DT5G
Manufacturer onsemi
Description TVS DIODE 3.3VWM SOT723
Category Circuit Protection
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Zener
Unidirectional Channels:2
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):3.3V (Max)
Voltage - Breakdown (Min):5V
Voltage - Clamping (Max) @ Ipp:-
Current - Peak Pulse (10/1000µs):-
Power - Peak Pulse:-
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:13pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-723
Supplier Device Package:SOT-723
