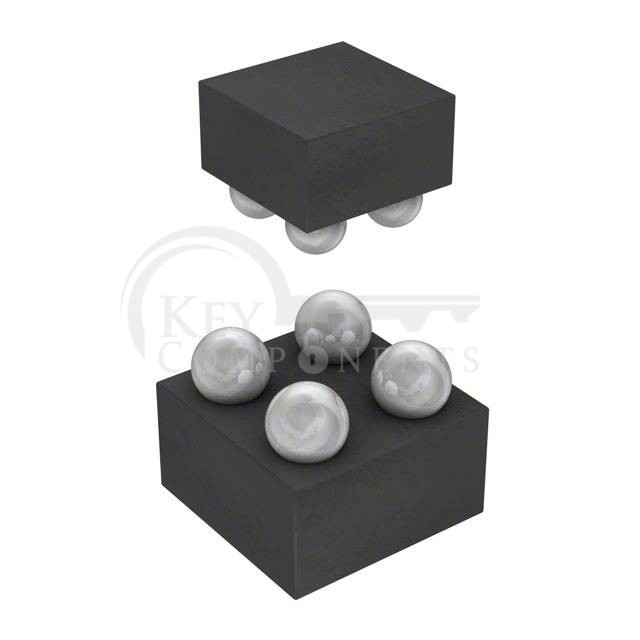

ESD7383NCTBG
| Manufacturer Part | ESD7383NCTBG |
|---|---|
| Manufacturer | onsemi |
| Description | TVS DIODE 3VWM 10VC 4WLCSP |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Steering (Rail to Rail) |
| Unidirectional Channels: | 3 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 3V |
| Voltage - Breakdown (Min): | 6V |
| Voltage - Clamping (Max) @ Ipp: | 10V |
| Current - Peak Pulse (10/1000µs): | 2.5A (8/20µs) |
| Power - Peak Pulse: | 50W |
| Power Line Protection: | Yes |
| Applications: | USB OTG |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -40°C ~ 85°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 4-UFBGA, WLCSP |
| Supplier Device Package: | 4-WLCSP (0.8x0.8) |
