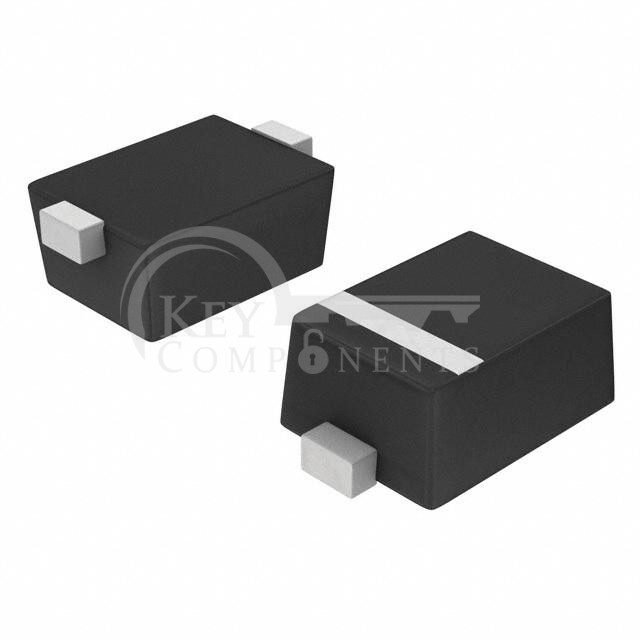

ESD7361P2T5G
| Manufacturer Part | ESD7361P2T5G |
|---|---|
| Manufacturer | onsemi |
| Description | TVS DIODE 5VWM 34VC SOD923 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Last Time Buy |
| Type: | Zener |
| Unidirectional Channels: | 1 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 5V |
| Voltage - Breakdown (Min): | 16.5V |
| Voltage - Clamping (Max) @ Ipp: | 34V (Typ) |
| Current - Peak Pulse (10/1000µs): | 16A (100ns) |
| Power - Peak Pulse: | - |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 0.55pF @ 1MHz |
| Operating Temperature: | -55°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SOD-923 |
| Supplier Device Package: | SOD-923 |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
Related parts
Parts Tags
ESD7361P2T5G Price
ESD7361P2T5G Distributor
ESD7361P2T5G Manufacturer
ESD7361P2T5G Technical Data
ESD7361P2T5G PDF
ESD7361P2T5G Datasheet
ESD7361P2T5G Picture
ESD7361P2T5G Image
ESD7361P2T5G Part
ESD7361P2T5G Stock
ESD7361P2T5G Inventory
ESD7361P2T5G Rfq
ESD7361P2T5G Inquiry
ESD7361P2T5G Online Order
Quote Request
- Min. :
- 1
- Availability :
- 208331 pieces
