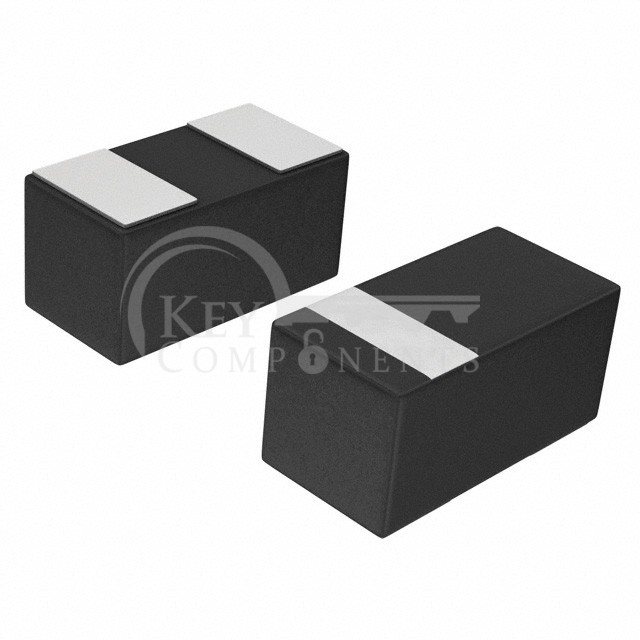

ESD11N5.0ST5G
| Manufacturer Part | ESD11N5.0ST5G |
|---|---|
| Manufacturer | onsemi |
| Description | TVS DIODE 5VWM 12VC 2DSN |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 5V (Max) |
| Voltage - Breakdown (Min): | 5.8V |
| Voltage - Clamping (Max) @ Ipp: | 12V |
| Current - Peak Pulse (10/1000µs): | 1A (8/20µs) |
| Power - Peak Pulse: | - |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 0201 (0603 Metric) |
| Supplier Device Package: | 2-DSN (0.60x0.30) |
