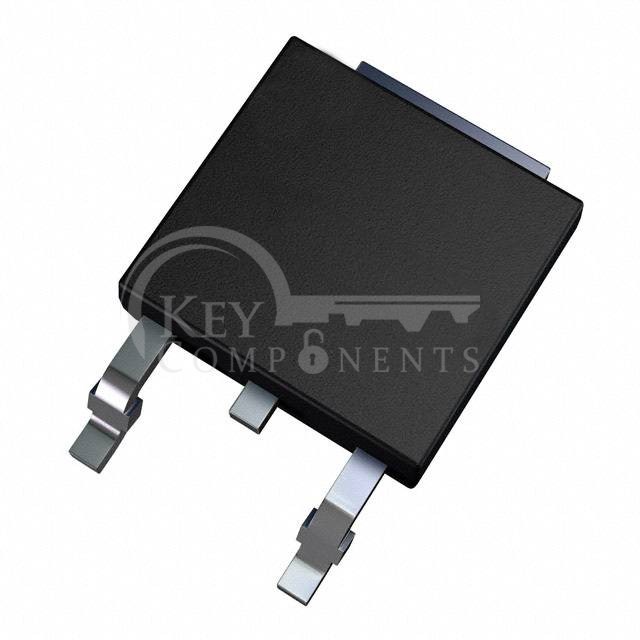

2SC5706-TL-H

Manufacturer Part	2SC5706-TL-H
Manufacturer	onsemi
Description	TRANS NPN 50V 5A TPFA
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Not For New Designs
Transistor Type:	NPN
Current - Collector (Ic) (Max):	5 A
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	240mV @ 100mA, 2A
Current - Collector Cutoff (Max):	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 500mA, 2V
Power - Max:	800 mW
Frequency - Transition:	400MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	TP-FA
