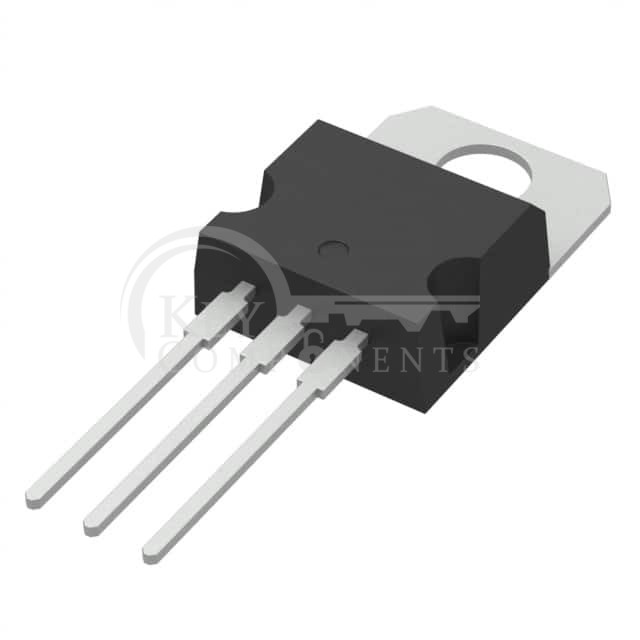

Manufacturer Part | BD911 |
---|---|
Manufacturer | NTE Electronics, Inc |
Description | TRANS NPN 100V 15A TO220 |
Category | Discrete Semiconductor Products |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Transistor Type: | NPN |
Current - Collector (Ic) (Max): | 15 A |
Voltage - Collector Emitter Breakdown (Max): | 100 V |
Vce Saturation (Max) @ Ib, Ic: | 3V @ 2.5A, 10A |
Current - Collector Cutoff (Max): | 1mA |
DC Current Gain (hFE) (Min) @ Ic, Vce: | 40 @ 500mA, 4V |
Power - Max: | 90 W |
Frequency - Transition: | 3MHz |
Operating Temperature: | -65°C ~ 150°C (TJ) |
Mounting Type: | Through Hole |
Package / Case: | TO-220-3 |
Supplier Device Package: | TO-220 |
