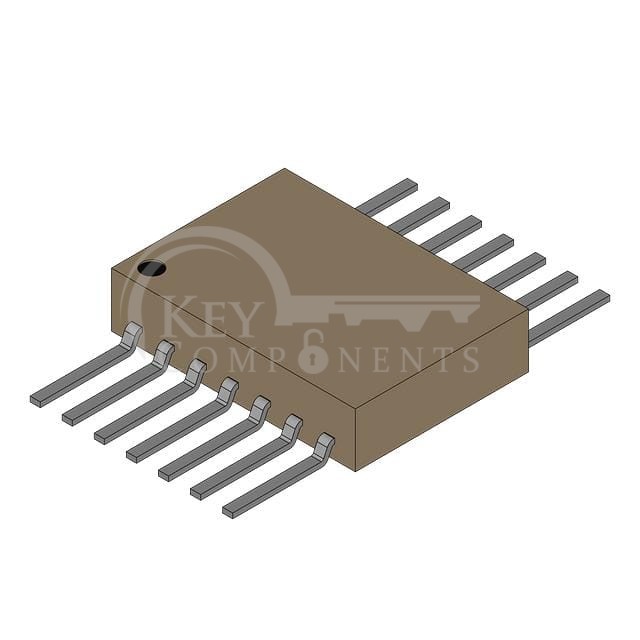

JM38510/07402BDA
| Manufacturer Part | JM38510/07402BDA |
|---|---|
| Manufacturer | National Semiconductor |
| Description | IC INVERTER AND 4CH 4-INP 14CFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Logic Type: | - |
| Number of Circuits: | 4 |
| Number of Inputs: | 4,2,3,2 |
| Features: | - |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Current - Quiescent (Max): | 16 mA |
| Current - Output High, Low: | 1mA, 20mA |
| Logic Level - Low: | 0.8V |
| Logic Level - High: | 2V |
| Max Propagation Delay @ V, Max CL: | 5.5ns @ 5V, 50pF |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 14-CFP |
| Package / Case: | 14-CFlatPack |
