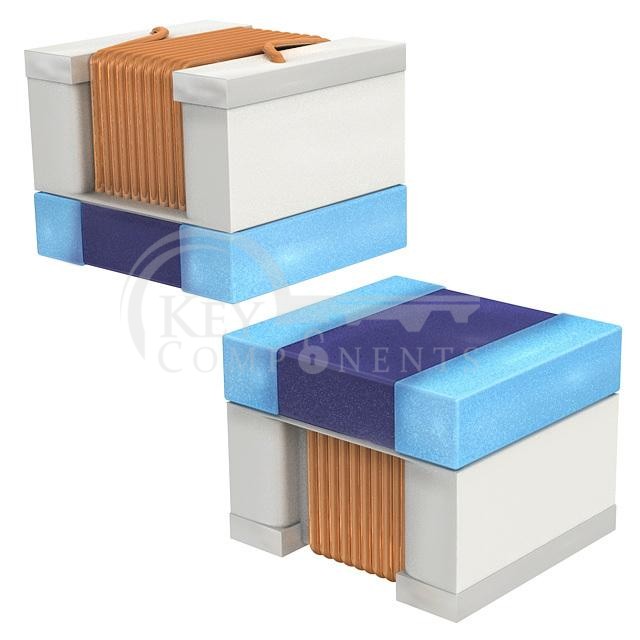

LQW2BASR56J00L
| Manufacturer Part | LQW2BASR56J00L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 560NH 230MA 1.9OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Wirewound |
| Material - Core: | Air |
| Inductance: | 560 nH |
| Tolerance: | ±5% |
| Current Rating (Amps): | 230 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 1.9Ohm Max |
| Q @ Freq: | 23 @ 50MHz |
| Frequency - Self Resonant: | 270MHz |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 25 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0805 (2015 Metric) |
| Supplier Device Package: | - |
| Size / Dimension: | 0.082" L x 0.060" W (2.09mm x 1.53mm) |
| Height - Seated (Max): | 0.060" (1.52mm) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
