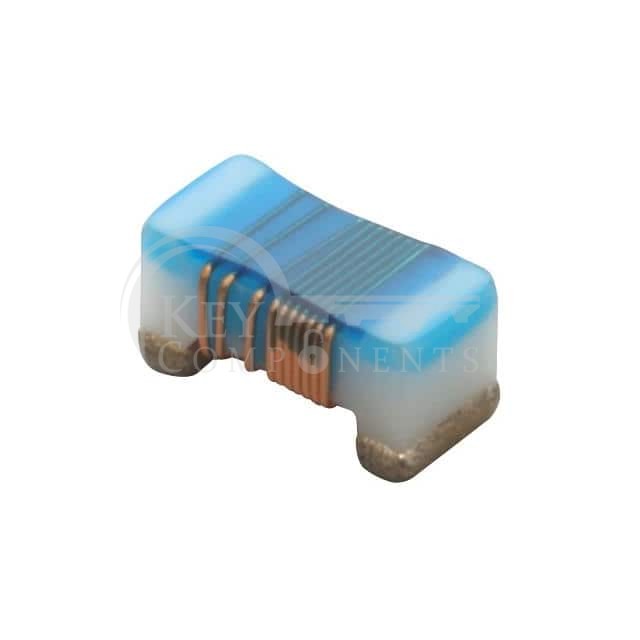

LQW18ANR18J00D
| Manufacturer Part | LQW18ANR18J00D |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 180NH 140MA 2.2OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Wirewound |
| Material - Core: | Non-Magnetic |
| Inductance: | 180 nH |
| Tolerance: | ±5% |
| Current Rating (Amps): | 140 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 2.2Ohm Max |
| Q @ Freq: | 25 @ 100MHz |
| Frequency - Self Resonant: | 1.3GHz |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 100 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0603 (1608 Metric) |
| Supplier Device Package: | 0603 (1608 Metric) |
| Size / Dimension: | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max): | 0.039" (1.00mm) |
