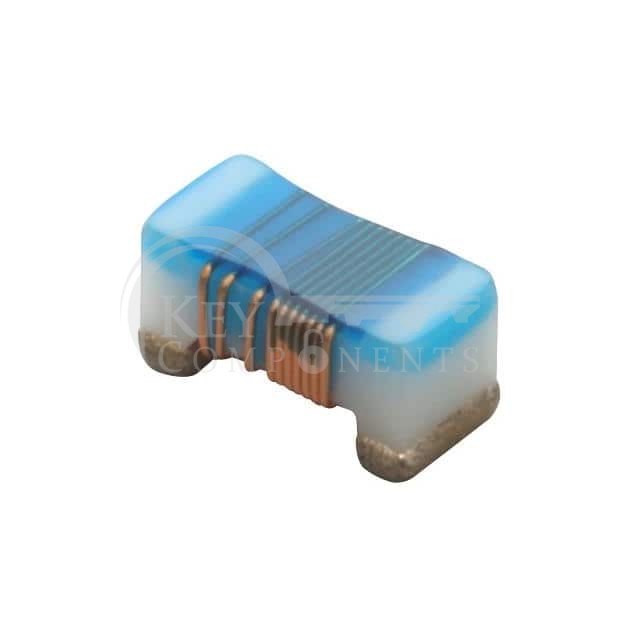

LQW18AN2N2D00D
| Manufacturer Part | LQW18AN2N2D00D |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 2.2NH 700MA 49MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Wirewound |
| Material - Core: | Non-Magnetic |
| Inductance: | 2.2 nH |
| Tolerance: | ±0.5nH |
| Current Rating (Amps): | 700 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 49mOhm Max |
| Q @ Freq: | 16 @ 250MHz |
| Frequency - Self Resonant: | 6GHz |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 100 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0603 (1608 Metric) |
| Supplier Device Package: | 0603 (1608 Metric) |
| Size / Dimension: | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max): | 0.039" (1.00mm) |
