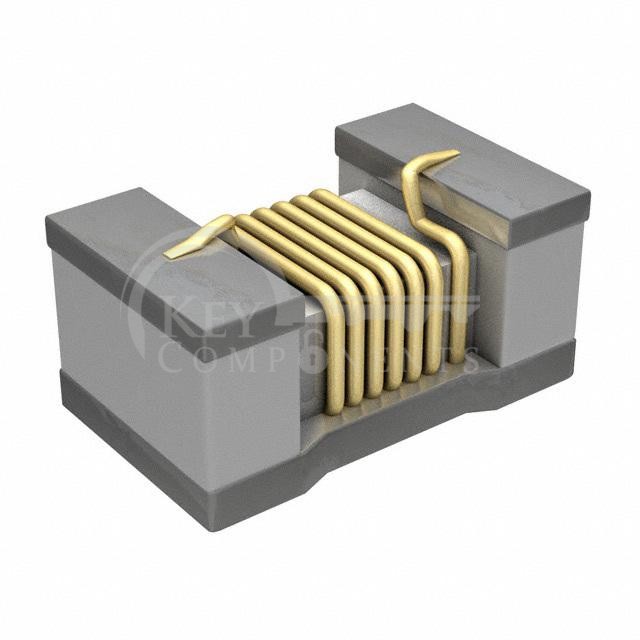

LQW15DN100M00D
| Manufacturer Part | LQW15DN100M00D |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 10UH 120MA 5.405OHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 10 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 120 mA |
| Current - Saturation (Isat): | 120mA |
| Shielding: | Shielded |
| DC Resistance (DCR): | 5.405Ohm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 20MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Inductance Frequency - Test: | 10 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0402 (1005 Metric) |
| Supplier Device Package: | 0402 |
| Size / Dimension: | 0.043" L x 0.026" W (1.10mm x 0.65mm) |
| Height - Seated (Max): | 0.028" (0.70mm) |
