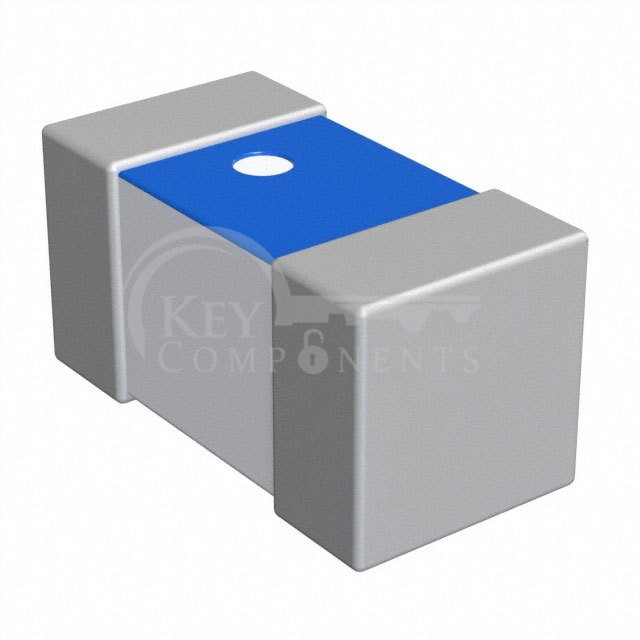

LQP03TNR22J02D
| Manufacturer Part | LQP03TNR22J02D |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 220NH 60MA 13 OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Thick Film |
| Material - Core: | Non-Magnetic |
| Inductance: | 220 nH |
| Tolerance: | ±5% |
| Current Rating (Amps): | 60 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 13Ohm Max |
| Q @ Freq: | 5 @ 100MHz |
| Frequency - Self Resonant: | 500MHz |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 500 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0201 (0603 Metric) |
| Supplier Device Package: | 0201 (0603 Metric) |
| Size / Dimension: | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max): | 0.013" (0.33mm) |
