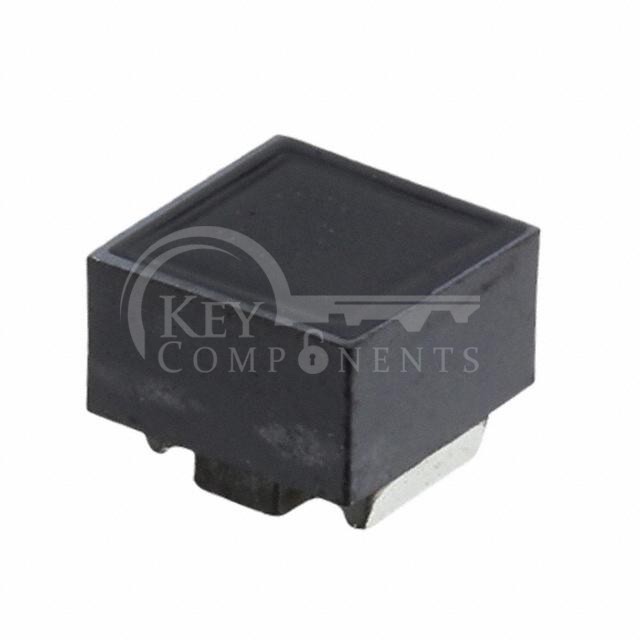

LQH66SN330M03L
| Manufacturer Part | LQH66SN330M03L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 33UH 860MA 196MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 33 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 860 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Shielded |
| DC Resistance (DCR): | 196mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 12MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 80°C |
| Inductance Frequency - Test: | 1 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | 2525 (6363 Metric) |
| Size / Dimension: | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Height - Seated (Max): | 0.197" (5.00mm) |
