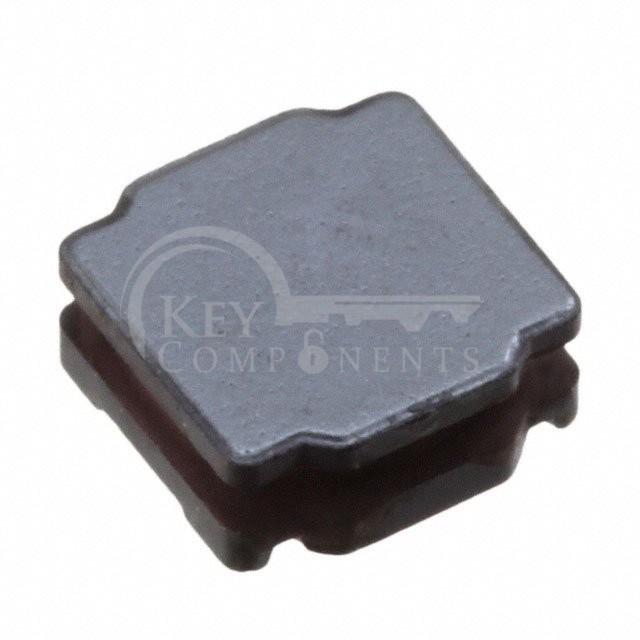

LQH5BPN220MT0L
| Manufacturer Part | LQH5BPN220MT0L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 22UH 1.05A 259MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 22 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 1.05 A |
| Current - Saturation (Isat): | 1.4A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 259mOhm |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 15MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | 2020 (5050 Metric) |
| Size / Dimension: | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max): | 0.087" (2.20mm) |
