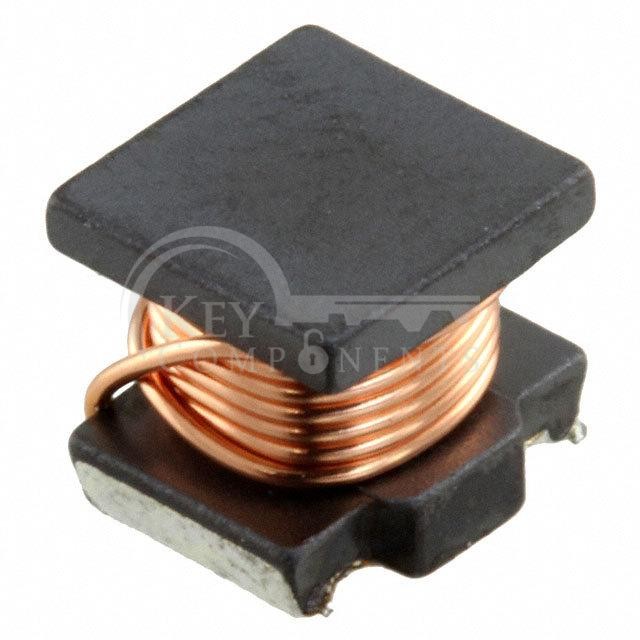

LQH55DN220M03L
| Manufacturer Part | LQH55DN220M03L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 22UH 1.2A 266 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 22 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 1.2 A |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 266mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 15MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Inductance Frequency - Test: | 1 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 2220 (5750 Metric) |
| Supplier Device Package: | 2220 (5650 Metric) |
| Size / Dimension: | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max): | 0.197" (5.00mm) |
