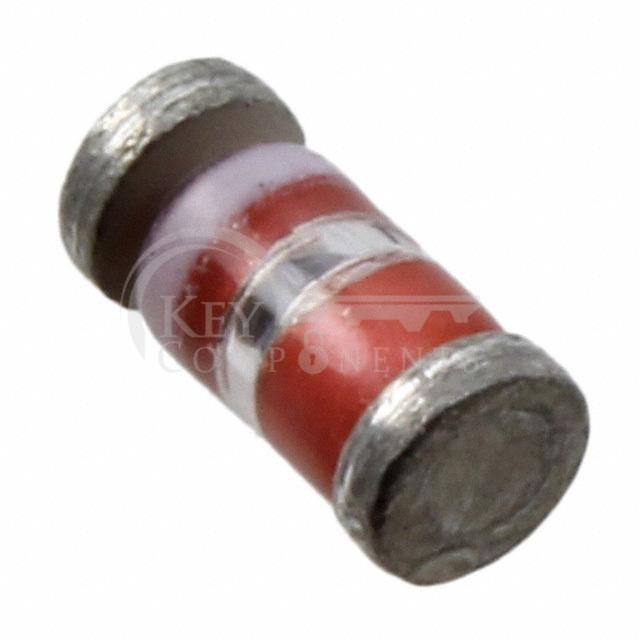

JANTXV1N4148UR-1

JANTXV1N4148UR-1

Manufacturer Part JANTXV1N4148UR-1
Manufacturer Microchip Technology
Description DIODE GEN PURP 75V 200MA DO213AA
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):75 V
Current - Average Rectified (Io):200mA
Voltage - Forward (Vf) (Max) @ If:1.2 V @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):20 ns
Current - Reverse Leakage @ Vr:25 nA @ 20 V
Capacitance @ Vr, F:4pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:DO-213AA
Supplier Device Package:DO-213AA
Operating Temperature - Junction:-65°C ~ 175°C
