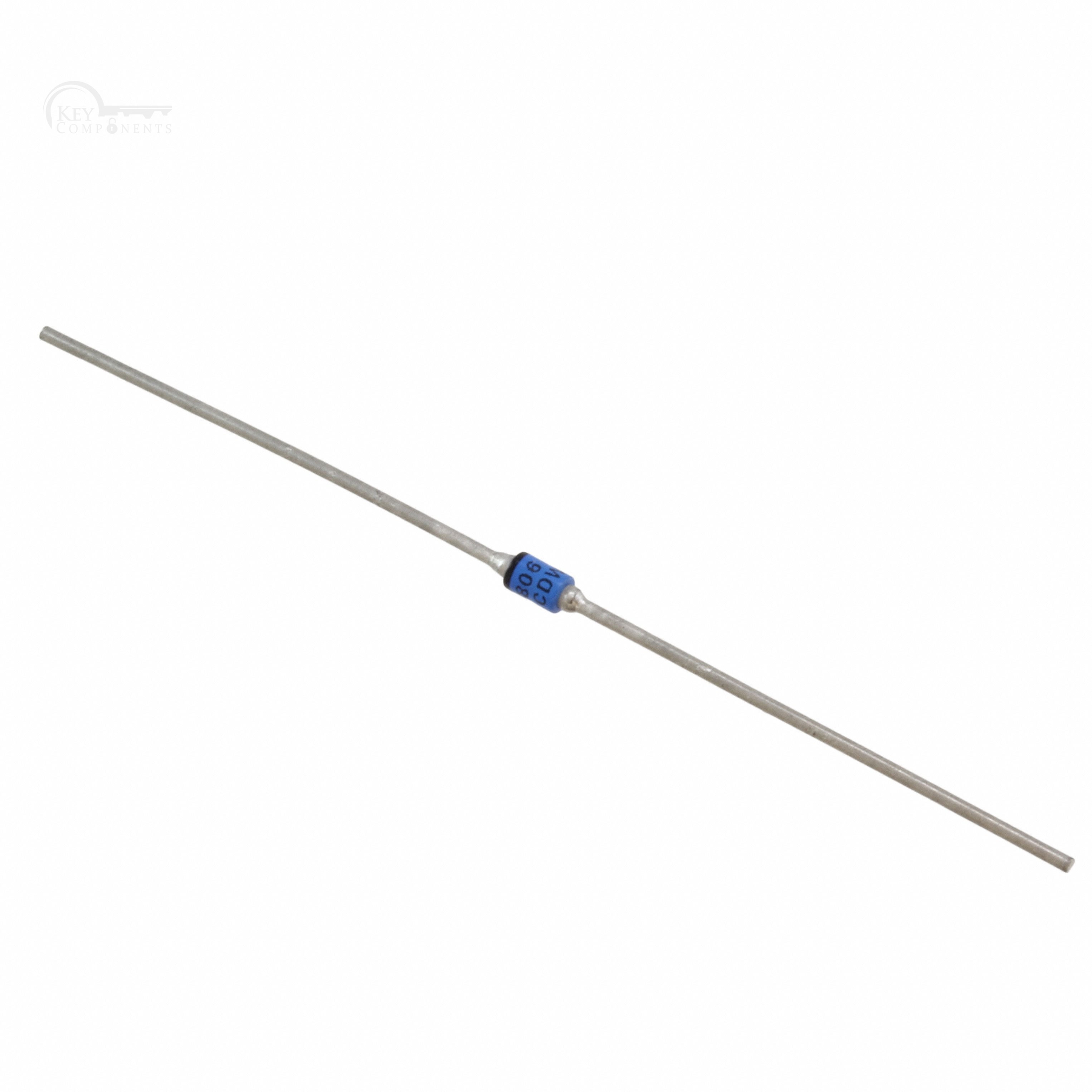

JAN1N5806

JAN1N5806

Manufacturer Part JAN1N5806
Manufacturer Microchip Technology
Description DIODE GEN PURP 150V 2.5A AXIAL
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):150 V
Current - Average Rectified (Io):2.5A
Voltage - Forward (Vf) (Max) @ If:975 mV @ 2.5 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):25 ns
Current - Reverse Leakage @ Vr:1 µA @ 150 V
Capacitance @ Vr, F:25pF @ 10V, 1MHz
Mounting Type:Through Hole
Package / Case:A, Axial
Supplier Device Package:-
Operating Temperature - Junction:-65°C ~ 175°C
