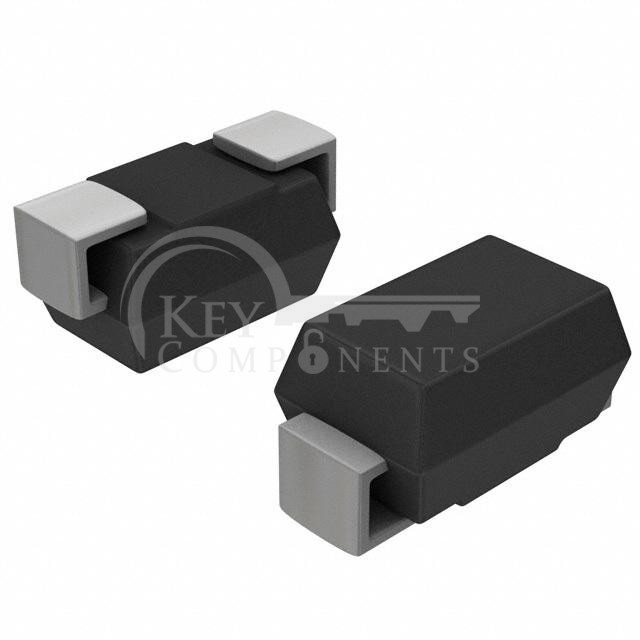

P4SMA13A
| Manufacturer Part | P4SMA13A |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | TVS DIODE 11.1VWM 18.2VC DO214AC |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 1 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 11.1V |
| Voltage - Breakdown (Min): | 12.4V |
| Voltage - Clamping (Max) @ Ipp: | 18.2V |
| Current - Peak Pulse (10/1000µs): | 22.5A |
| Power - Peak Pulse: | 400W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -65°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AC, SMA |
| Supplier Device Package: | DO-214AC (SMA) |
