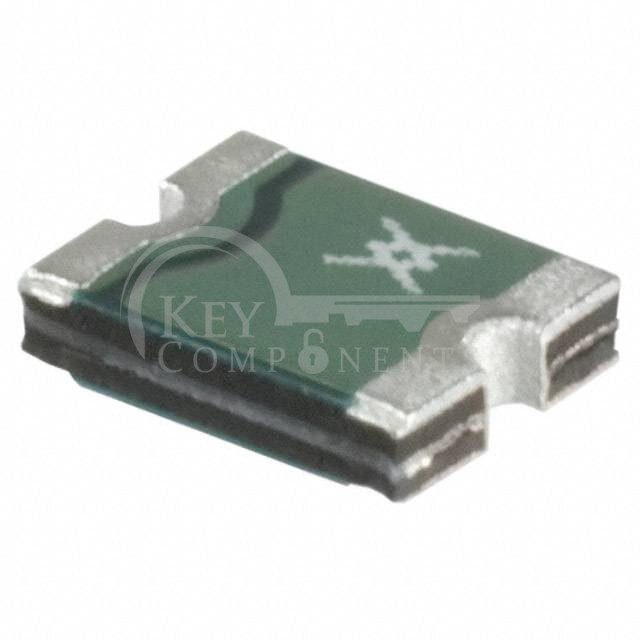

MICROSMD500LR-2
| Manufacturer Part | MICROSMD500LR-2 |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | PTC RESET FUSE 6V 5A 1210 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Polymeric |
| Voltage - Max: | 6V |
| Current - Max: | 50 A |
| Current - Hold (Ih) (Max): | 5 A |
| Current - Trip (It): | 10 A |
| Time to Trip: | 2 s |
| Resistance - Initial (Ri) (Min): | 2 mOhms |
| Resistance - Post Trip (R1) (Max): | 7 mOhms |
| Resistance - 25°C (Typ): | - |
| Operating Temperature: | -40°C ~ 80°C |
| Ratings: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 1210 (3225 Metric), Concave |
| Size / Dimension: | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max): | - |
| Thickness (Max): | 0.039" (1.00mm) |
| Lead Spacing: | - |
