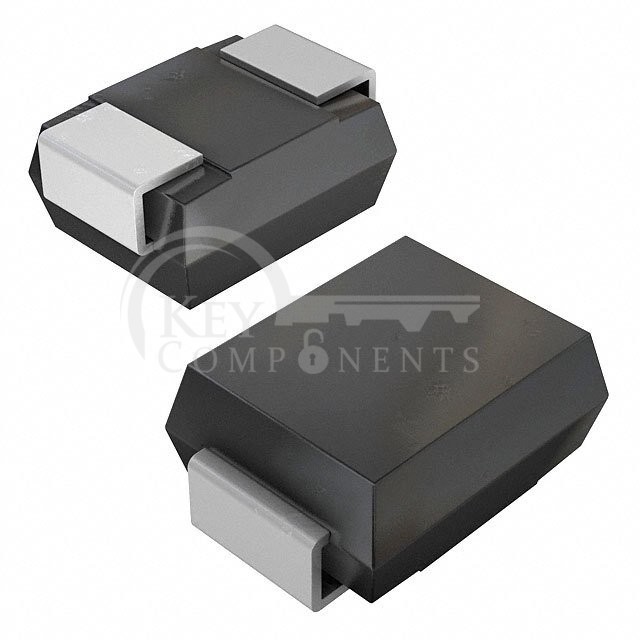

1KSMB24CA
| Manufacturer Part | 1KSMB24CA |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | TVS DIODE 20.5VWM 33.2VC DO214AA |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 20.5V |
| Voltage - Breakdown (Min): | 22.8V |
| Voltage - Clamping (Max) @ Ipp: | 33.2V |
| Current - Peak Pulse (10/1000µs): | 30.1A |
| Power - Peak Pulse: | 1000W (1kW) |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AA, SMB |
| Supplier Device Package: | DO-214AA (SMBJ) |
