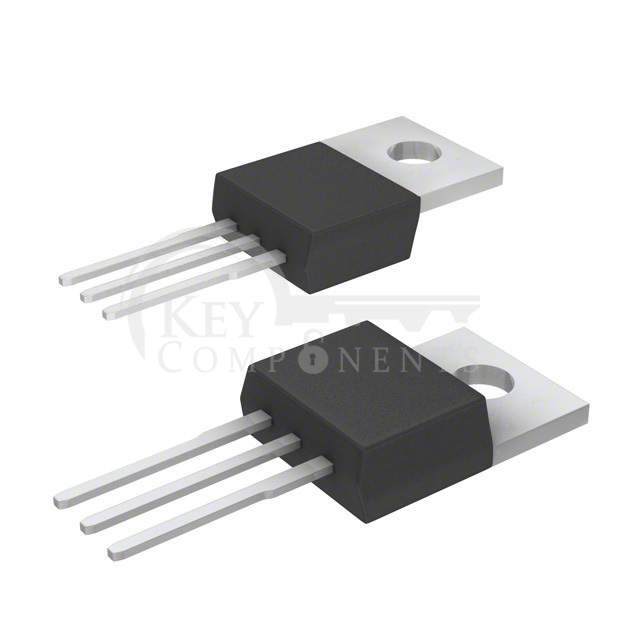

IXTP48P05T

Manufacturer Part	IXTP48P05T
Manufacturer	IXYS
Description	MOSFET P-CH 50V 48A TO220AB
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	50 V
Current - Continuous Drain (Id) @ 25°C:	48A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	30mOhm @ 24A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	53 nC @ 10 V
Vgs (Max):	±15V
Input Capacitance (Ciss) (Max) @ Vds:	3660 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	150W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220-3
Package / Case:	TO-220-3
