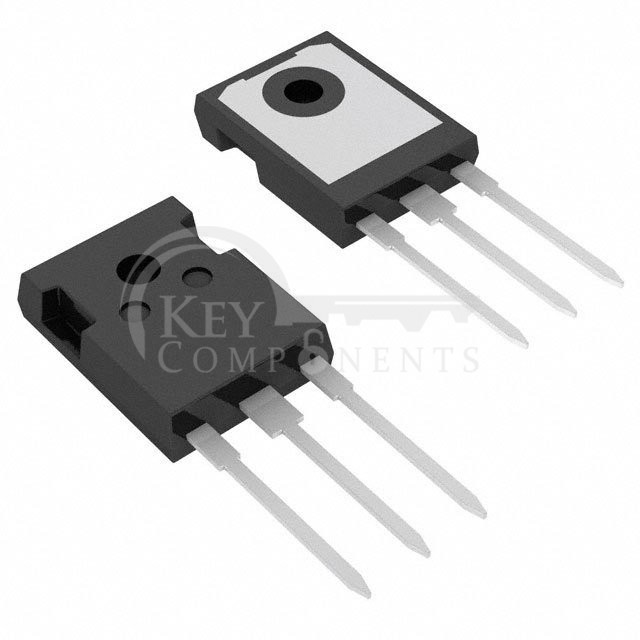

Manufacturer Part | IXTH11P50 |
---|---|
Manufacturer | IXYS |
Description | MOSFET P-CH 500V 11A TO247 |
Category | Discrete Semiconductor Products |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
FET Type: | P-Channel |
Technology: | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss): | 500 V |
Current - Continuous Drain (Id) @ 25°C: | 11A (Tc) |
Drive Voltage (Max Rds On, Min Rds On): | 10V |
Rds On (Max) @ Id, Vgs: | 750mOhm @ 5.5A, 10V |
Vgs(th) (Max) @ Id: | 5V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs: | 130 nC @ 10 V |
Vgs (Max): | ±20V |
Input Capacitance (Ciss) (Max) @ Vds: | 4700 pF @ 25 V |
FET Feature: | - |
Power Dissipation (Max): | 300W (Tc) |
Operating Temperature: | -55°C ~ 150°C (TJ) |
Mounting Type: | Through Hole |
Supplier Device Package: | TO-247 (IXTH) |
Package / Case: | TO-247-3 |
