IXFA7N100P

Manufacturer Part	IXFA7N100P
Manufacturer	IXYS
Description	MOSFET N-CH 1000V 7A TO263
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	1000 V
Current - Continuous Drain (Id) @ 25°C:	7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.9Ohm @ 3.5A, 10V
Vgs(th) (Max) @ Id:	6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	47 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	2590 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	300W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

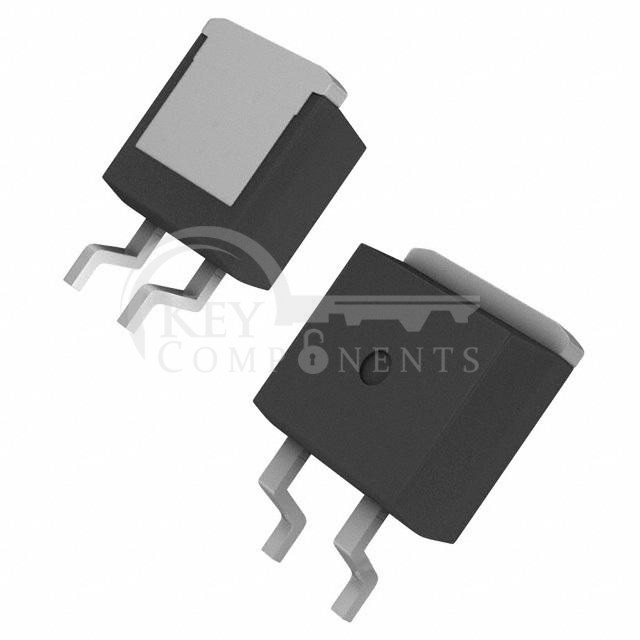

Supplier Device Package:	TO-263 (IXFA)
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
