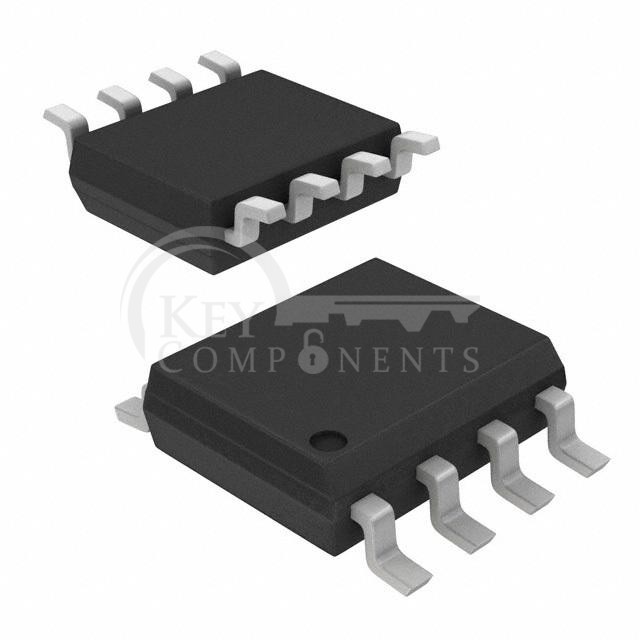

IRF9321TRPBF

Manufacturer Part	IRF9321TRPBF
Manufacturer	Infineon Technologies
Description	MOSFET P-CH 30V 15A 8SO
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	7.2mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	2.4V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:	98 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2590 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SO
Package / Case:	8-SOIC (0.154", 3.90mm Width)
