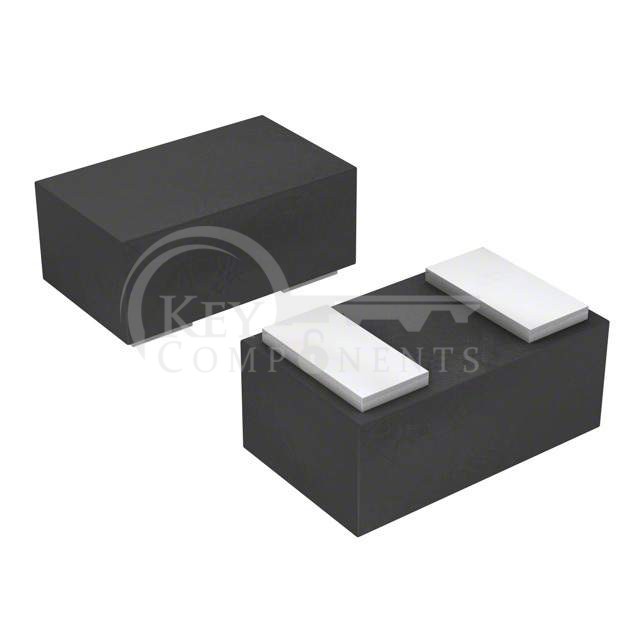

ESD5V3S1B02LRHE6327XTSA1
| Manufacturer Part | ESD5V3S1B02LRHE6327XTSA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | TVS DIODE 5.3VWM 13VC TSLP-2 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 5.3V (Max) |
| Voltage - Breakdown (Min): | 6V |
| Voltage - Clamping (Max) @ Ipp: | 13V |
| Current - Peak Pulse (10/1000µs): | 5.5A (8/20µs) |
| Power - Peak Pulse: | 80W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 17.5pF @ 1MHz |
| Operating Temperature: | -55°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SOD-882 |
| Supplier Device Package: | PG-TSLP-2-17 |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
