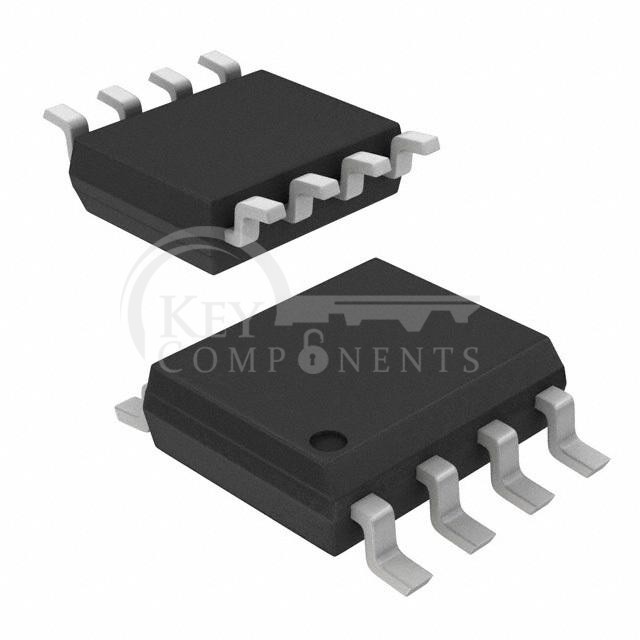

NDS8425

Manufacturer Part	NDS8425
Manufacturer	Fairchild Semiconductor
Description	SMALL SIGNAL FIELD-EFFECT TRANSI
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	7.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.7V, 4.5V
Rds On (Max) @ Id, Vgs:	22mOhm @ 7.4A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	1098 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOIC
Package / Case:	8-SOIC (0.154", 3.90mm Width)
