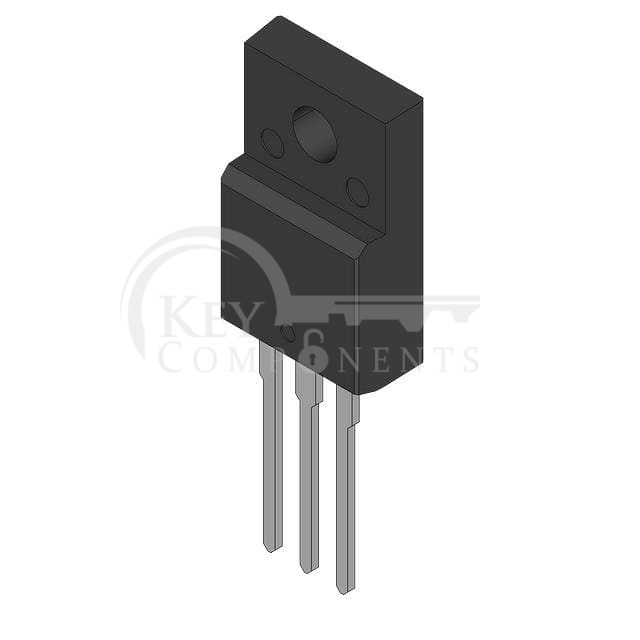

KA1H0165RTU
| Manufacturer Part | KA1H0165RTU |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | IC OFFLINE SW MULT TOP TO220F |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Isolation: | Non-Isolated |
| Internal Switch(s): | Yes |
| Voltage - Breakdown: | 650V |
| Topology: | Flyback, Forward |
| Voltage - Start Up: | 15 V |
| Voltage - Supply (Vcc/Vdd): | 10V ~ 30V |
| Duty Cycle: | 67% |
| Frequency - Switching: | 100kHz |
| Power (Watts): | - |
| Fault Protection: | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features: | Soft Start |
| Operating Temperature: | -25°C ~ 85°C (TA) |
| Package / Case: | TO-220-4 Full Pack |
| Supplier Device Package: | TO-220F-4 |
| Mounting Type: | Through Hole |
