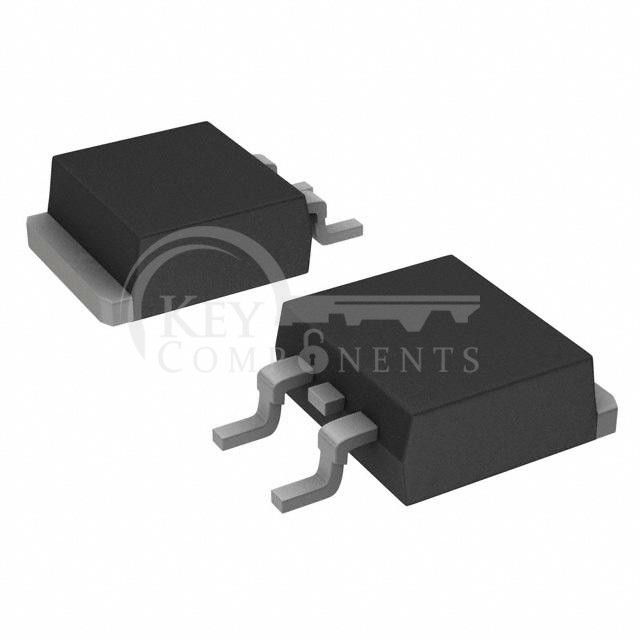

HUFA75639S3ST

Manufacturer Part	HUFA75639S3ST
Manufacturer	Fairchild Semiconductor
Description	56A, 100V, 0.025OHM, N-CHANNEL,
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	56A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	25mOhm @ 56A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	130 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2000 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	200W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D²PAK (TO-263AB)
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
