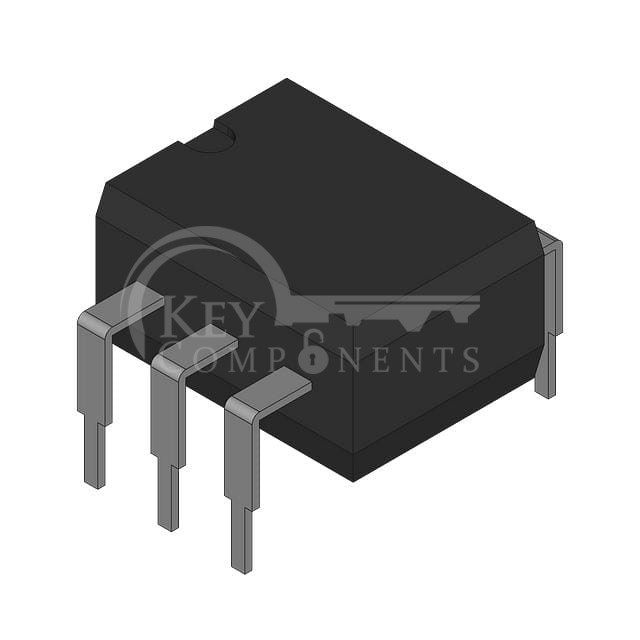

4N31
| Manufacturer Part | 4N31 |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | DARLINGTON OUTPUT OPTOCOUPLER |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5000Vrms |
| Current Transfer Ratio (Min): | 50% @ 10mA |
| Current Transfer Ratio (Max): | - |
| Turn On / Turn Off Time (Typ): | 5µs, 40µs (Max) |
| Rise / Fall Time (Typ): | - |
| Input Type: | DC |
| Output Type: | Darlington with Base |
| Voltage - Output (Max): | 55V |
| Current - Output / Channel: | - |
| Voltage - Forward (Vf) (Typ): | 1.2V |
| Current - DC Forward (If) (Max): | 60 mA |
| Vce Saturation (Max): | 1.2V |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Through Hole |
| Package / Case: | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 6-DIP |
