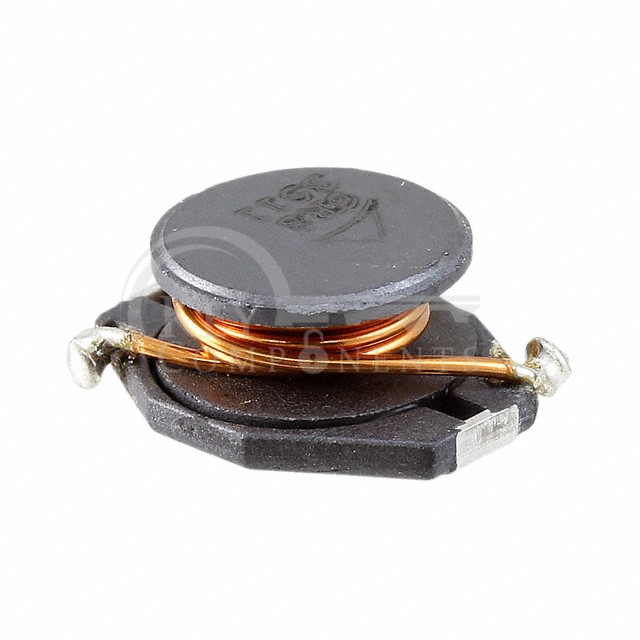

B82476B1223M100
| Manufacturer Part | B82476B1223M100 |
|---|---|
| Manufacturer | EPCOS - TDK Electronics |
| Description | FIXED IND 22UH 2.95A 50 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 22 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 2.95 A |
| Current - Saturation (Isat): | 2.6A |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 50mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -55°C ~ 150°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Height - Seated (Max): | 0.200" (5.08mm) |
