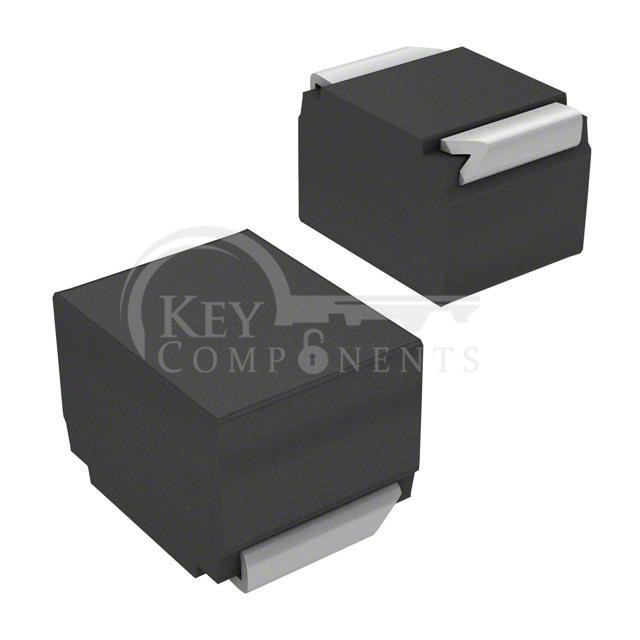

B82422T1222K000
| Manufacturer Part | B82422T1222K000 |
|---|---|
| Manufacturer | EPCOS - TDK Electronics |
| Description | FIXED IND 2.2UH 320MA 800MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 2.2 µH |
| Tolerance: | ±10% |
| Current Rating (Amps): | 320 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 800mOhm Max |
| Q @ Freq: | 30 @ 7.96MHz |
| Frequency - Self Resonant: | 100MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 7.96 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 2-SMD, J-Lead |
| Supplier Device Package: | 1210 (3225 Metric) |
| Size / Dimension: | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max): | 0.083" (2.10mm) |
