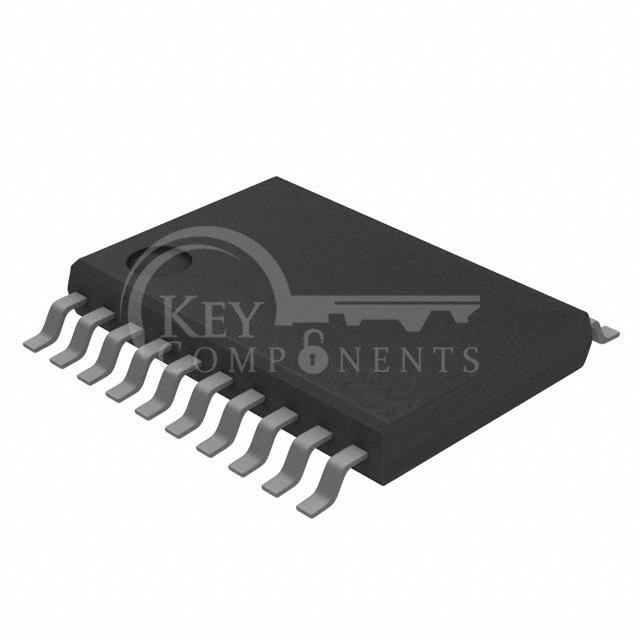

ZXBM1015ST20TC
| Manufacturer Part | ZXBM1015ST20TC |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC MOTOR DRIVER 4.7V-18V 20TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Motor Type - Stepper: | - |
| Motor Type - AC, DC: | Brushless DC (BLDC) |
| Function: | Controller - Commutation, Direction Management |
| Output Configuration: | Pre-Driver - Half Bridge (2) |
| Interface: | PWM |
| Technology: | - |
| Step Resolution: | - |
| Applications: | Fan Controller |
| Current - Output: | - |
| Voltage - Supply: | 4.7V ~ 18V |
| Voltage - Load: | - |
| Operating Temperature: | -40°C ~ 110°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 20-TSSOP |
