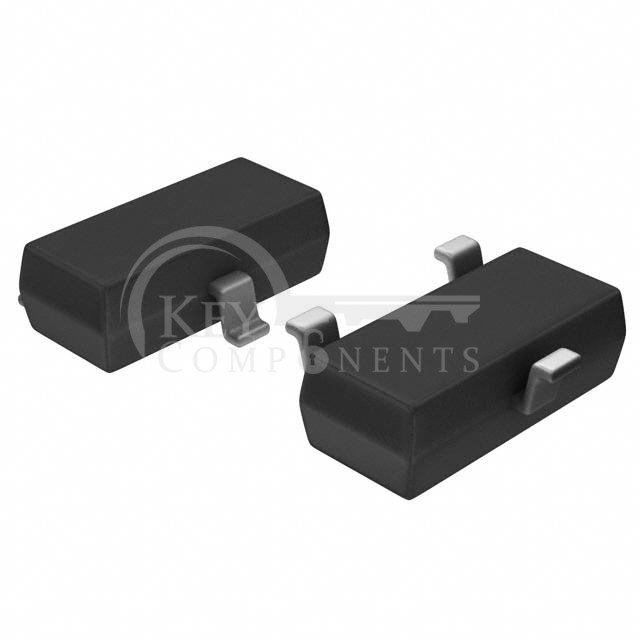

ZC832BTA
| Manufacturer Part | ZC832BTA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | DIODE VAR CAP 22PF 25V SOT23-3 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Capacitance @ Vr, F: | 23.1pF @ 2V, 1MHz |
| Capacitance Ratio: | 6.5 |
| Capacitance Ratio Condition: | C2/C20 |
| Voltage - Peak Reverse (Max): | 25 V |
| Diode Type: | Single |
| Q @ Vr, F: | 200 @ 3V, 50MHz |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 |
